Defines functions and structs for message handling. More...

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include <ctype.h>
#include <time.h>
#include <sys/mman.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <unistd.h>
#include <fcntl.h>
#include <sys/param.h>
#include <errno.h>
#include "cmime_address.h"
#include "cmime_list.h"
#include "cmime_header.h"
#include "cmime_part.h"
#include "cmime_util.h"
#include "cmime_string.h"

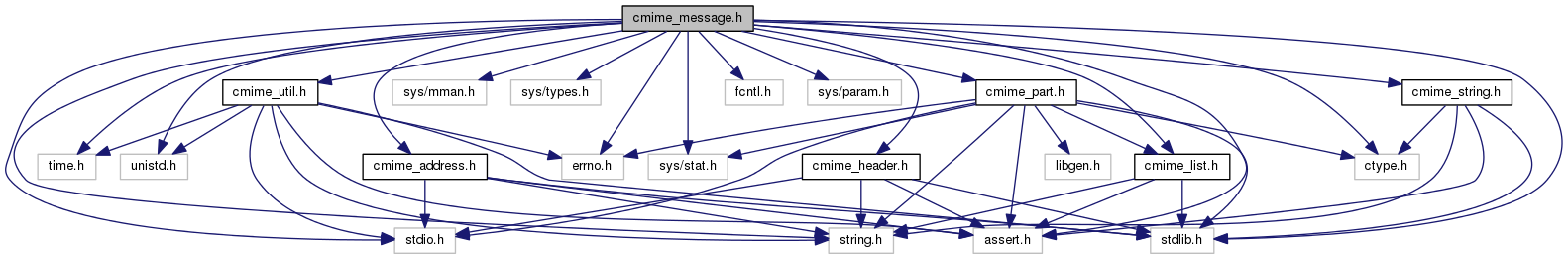

Include dependency graph for cmime_message.h:

Go to the source code of this file.

Data Structures
struct	CMimeMessage_T
	Represents an email message. More...

Macros
#define	cmime_message_get_sender(message) (message->sender)

#define	cmime_message_get_headers(message) (message->headers)

#define	cmime_message_get_recipients(message) (message->recipients)

#define	cmime_message_get_boundary(message) (message->boundary)

#define	cmime_message_part_count(message) (message->parts->size)
	Return number of mime parts. More...

#define	cmime_message_part_first(message) ((CMimePart_T *)cmime_list_head(message->parts)->data)

#define	cmime_message_part_last(message) ((CMimePart_T *)cmime_list_tail(message->parts)->data)

Enumerations
enum	CMimeBoundaryType_T { CMIME_BOUNDARY_OPEN, CMIME_BOUNDARY_CLOSE }
	Possible types of boundaries. More...

enum	CMimeMultipartType_T { CMIME_MULTIPART_MIXED, CMIME_MULTIPART_DIGEST, CMIME_MULTIPART_MESSAGE, CMIME_MULTIPART_ALTERNATIVE, CMIME_MULTIPART_RELATED }
	Possible multipart mime subtypes. More...

Functions
CMimeMessage_T *	cmime_message_new (void)
	Creates a new CMimeMessage_T object. More...

void	cmime_message_free (CMimeMessage_T *message)
	Free a CMimeMessage_T object. More...

void	cmime_message_set_sender (CMimeMessage_T message, const char sender)
	Add sender to CMimeMessage_T object. If sender already exists, it will be overwritten. More...

void	cmime_message_set_sender_encode (CMimeMessage_T message, const char sender)
	Add sender to CMimeMessage_T object and convert to 7 bit mime encoded string based on RFC 2047. If sender already exists, it will be overwritten. More...

char *	cmime_message_get_sender_string (CMimeMessage_T *message)
	Get sender of a CMimeMessage_T object as string. More...

void	cmime_message_set_message_id (CMimeMessage_T message, const char mid)
	Set message id to CMimeMessage_T object, if alreay exists, value will be overwritten. More...

char *	cmime_message_get_message_id (CMimeMessage_T *message)
	Get MessageID of message object. More...

char *	cmime_message_generate_message_id (void)
	Generate a message id. More...

void	cmime_message_add_generated_message_id (CMimeMessage_T *message)
	Add a newly generated message id to a CMimeMessage_T object. More...

int	cmime_message_set_header (CMimeMessage_T message, const char header)
	Set a header to message object. If header already exists, it will be overwritten. More...

CMimeHeader_T *	cmime_message_get_header (CMimeMessage_T message, const char header)
	Get header for given key. More...

int	cmime_message_add_recipient (CMimeMessage_T message, const char recipient, CMimeAddressType_T t)
	Add recipient to message. More...

int	cmime_message_add_recipient_encode (CMimeMessage_T message, const char recipient, CMimeAddressType_T t)
	Add recipient to message and convert to 7 bit mime encoded string based on RFC 2047. More...

int	cmime_message_add_recipient_to (CMimeMessage_T message, const char recipient)
	Add To recipient to message. More...

int	cmime_message_add_recipient_cc (CMimeMessage_T message, const char recipient)
	Add Cc recipient to message. More...

int	cmime_message_add_recipient_bcc (CMimeMessage_T message, const char recipient)
	Add Bcc recipient to message. More...

void	cmime_message_set_content_type (CMimeMessage_T message, const char s)
	Set Content-Type header. More...

char *	cmime_message_get_content_type (CMimeMessage_T *message)
	Get Content-Type header value. More...

void	cmime_message_set_content_transfer_encoding (CMimeMessage_T message, const char s)
	set Content-Transfer-Encoding value More...

char *	cmime_message_get_content_transfer_encoding (CMimeMessage_T *message)
	Get Content-Transfer-Encoding value. More...

void	cmime_message_set_content_id (CMimeMessage_T message, const char s)
	Set Content-ID header value. More...

char *	cmime_message_get_content_id (CMimeMessage_T *message)
	Get Content-ID header value. More...

void	cmime_message_set_content_description (CMimeMessage_T message, const char s)
	Set Content-Description value. More...

char *	cmime_message_get_content_description (CMimeMessage_T *message)
	Get Content-Description header value. More...

void	cmime_message_set_mime_version (CMimeMessage_T message, const char s)
	Set Mime-Version header value. According to RFC 2045, Mime-Version header is required at the top level of a message. Not required for each body part of a multipart entity. It's required for the embedded headers of a body of type "message/rfc822" or "message/partial" if the embedded message is itself claimed to be MIME. More...

char *	cmime_message_get_mime_version (CMimeMessage_T *message)
	Get Mime-Version header value. More...

void	cmime_message_set_date (CMimeMessage_T message, const char s)
	Set date string header. More...

char *	cmime_message_get_date (CMimeMessage_T *message)
	Get date string from CMimeMessage_T object. More...

int	cmime_message_set_date_now (CMimeMessage_T *message)
	Get current time and set date header. More...

void	cmime_message_set_boundary (CMimeMessage_T message, const char boundary)
	Set message boundary. More...

char *	cmime_message_generate_boundary (void)
	Generate a message boundary. More...

void	cmime_message_add_generated_boundary (CMimeMessage_T *message)
	Add a newly generated boundary to a CMimeMessage_T object. More...

int	cmime_message_from_file (CMimeMessage_T *message, const char filename, int header_only)
	Parse given file and create a CMimeMessage_T object. More...

int	cmime_message_to_file (CMimeMessage_T message, const char filename)
	Write CMimeMessage_T object to file. More...

char *	cmime_message_to_string (CMimeMessage_T *message)
	Return a message object as string. More...

int	cmime_message_from_string (CMimeMessage_T *message, const char content, int header_only)
	Parse given string and create a new CMimeMessage_T object. More...

void	cmime_message_set_subject (CMimeMessage_T message, const char s)
	Set message subject. More...

void	cmime_message_set_subject_encode (CMimeMessage_T message, const char s)
	Set message subject and convert to 7 bit mime encoded string based on RFC 2047. More...

char *	cmime_message_get_subject (CMimeMessage_T *message)
	Get the subject string from CMimeMessage_T object. More...

void	cmime_message_prepend_subject (CMimeMessage_T message, const char s)
	prepend string to subject More...

void	cmime_message_append_subject (CMimeMessage_T message, const char s)
	append string to subject More...

int	cmime_message_set_body (CMimeMessage_T message, const char content)
	Set plain body to non multipart message. More...

int	cmime_message_append_part (CMimeMessage_T message, CMimePart_T part)
	Append mime part to message object and generate boundary if necessary. More...

void	cmime_message_add_attachment (CMimeMessage_T message, char attachment)
	add attachment to message More...

CMimeMessage_T *	cmime_message_create_skeleton (const char sender, const char recipient, const char *subject)
	create message skeleton with basic header information More...

int	cmime_message_part_remove (CMimeMessage_T message, CMimePart_T part)
	Remove a mime part from message. More...

int	cmime_message_add_child_part (CMimeMessage_T message, CMimePart_T part, CMimePart_T *child, CMimeMultipartType_T subtype)
	Add a child part to given mimepart, set content type and generate a boundary if necessary. More...

Detailed Description

Defines functions and structs for message handling.

Macro Definition Documentation

#define cmime_message_get_boundary ( message ) (message->boundary)

Returns: message boundary

#define cmime_message_get_headers ( message ) (message->headers)

Returns: CMimeList_T with headers

#define cmime_message_get_recipients ( message ) (message->recipients)

Returns: CMimeList_T with recipients

#define cmime_message_get_sender ( message ) (message->sender)

Returns: sender of CMimeMessage_T object

cmime_message_part_count ( message ) (message->parts->size)

Return number of mime parts.

Parameters

message a CMimeMessage_T obejct

Returns: number of mime parts

Examples:: parse_mime_message.c.

#define cmime_message_part_first ( message ) ((CMimePart_T *)cmime_list_head(message->parts)->data)

Returns: returns the first mime part of message

#define cmime_message_part_last ( message ) ((CMimePart_T *)cmime_list_tail(message->parts)->data)

Returns: returns the last mime part of message

Enumeration Type Documentation

enum CMimeBoundaryType_T

Possible types of boundaries.

Enumerator
CMIME_BOUNDARY_OPEN	indicates an opening boundary
CMIME_BOUNDARY_CLOSE	indicates an closing boundary

enum CMimeMultipartType_T

Possible multipart mime subtypes.

Enumerator
CMIME_MULTIPART_MIXED	multipart/mixed
CMIME_MULTIPART_DIGEST	multipart/digest
CMIME_MULTIPART_MESSAGE	message/rfc822
CMIME_MULTIPART_ALTERNATIVE	multipart/alternative
CMIME_MULTIPART_RELATED	multipart/related

Function Documentation

void cmime_message_add_attachment	(	CMimeMessage_T *	message,
		char *	attachment
	)

add attachment to message

Parameters

message	a CMimeMessage_T object
attachment	a file pointer

Examples:: create_mime_message_skeleton_add_attachment.c.

int cmime_message_add_child_part	(	CMimeMessage_T *	message,
		CMimePart_T *	part,
		CMimePart_T *	child,
		CMimeMultipartType_T	subtype
	)

Add a child part to given mimepart, set content type and generate a boundary if necessary.

Parameters

message	a CMimeMessage_T object
part	the parent mime part
child	the child mime part, which should be added
subtype	the multipart subtype

Returns: 0 on success or -1 in case of error

void cmime_message_add_generated_boundary ( CMimeMessage_T * message )

Add a newly generated boundary to a CMimeMessage_T object.

Parameters

message a CMimeMessage_T object

Examples:: create_mime_message_part_from_file.c.

void cmime_message_add_generated_message_id ( CMimeMessage_T * message )

Add a newly generated message id to a CMimeMessage_T object.

Parameters

message a CMimeMessage_T object

int cmime_message_add_recipient	(	CMimeMessage_T *	message,
		const char *	recipient,
		CMimeAddressType_T	t
	)

Add recipient to message.

Parameters

message	a CMimeMessage_T object
recipient	a recipient string
t	CMimeAddressType_T recipient type

Returns: 0 on success or -1 in case of error

Examples:: create_mime_message.c, and create_mime_message_part_from_file.c.

int cmime_message_add_recipient_bcc	(	CMimeMessage_T *	message,
		const char *	recipient
	)

Add Bcc recipient to message.

Parameters

message	a CMimeMessage_T object
recipient	a recipient string

Returns: 0 on success or -1 in case of error

int cmime_message_add_recipient_cc	(	CMimeMessage_T *	message,
		const char *	recipient
	)

Add Cc recipient to message.

Parameters

message	a CMimeMessage_T object
recipient	a recipient string

Returns: 0 on success or -1 in case of error

int cmime_message_add_recipient_encode	(	CMimeMessage_T *	message,
		const char *	recipient,
		CMimeAddressType_T	t
	)

Add recipient to message and convert to 7 bit mime encoded string based on RFC 2047.

Parameters

message	a CMimeMessage_T object
recipient	a recipient string
t	CMimeAddressType_T recipient type

Returns: 0 on success or -1 in case of error

int cmime_message_add_recipient_to	(	CMimeMessage_T *	message,
		const char *	recipient
	)

Add To recipient to message.

Parameters

message	a CMimeMessage_T object
recipient	a recipient string

Returns: 0 on success or -1 in case of error

int cmime_message_append_part	(	CMimeMessage_T *	message,
		CMimePart_T *	part
	)

Append mime part to message object and generate boundary if necessary.

Parameters

message	a CMimeMessage_T object
part	a CMimePart_T part

Returns: 0 on success, -1 in case of error

Examples:: create_mime_message_part_from_file.c.

void cmime_message_append_subject	(	CMimeMessage_T *	message,
		const char *	s
	)

append string to subject

Parameters

message	a CMimeMessage_T object
s	a append string for subject

Examples:: append_and_prepend_subject.c.

CMimeMessage_T* cmime_message_create_skeleton	(	const char *	sender,
		const char *	recipient,
		const char *	subject
	)

create message skeleton with basic header information

Parameters

sender	a from sender
recipient	a to recipient
subject	a subject string

Returns: CMimeMessage_T pointer

Examples:: append_and_prepend_subject.c, create_mime_message_skeleton.c, and create_mime_message_skeleton_add_attachment.c.

void cmime_message_free ( CMimeMessage_T * message )

Free a CMimeMessage_T object.

Free a CMimeMessage_T object

Parameters

message CMimeMessage_T pointer

Examples:: append_and_prepend_subject.c, create_mime_message.c, create_mime_message_part_from_file.c, create_mime_message_skeleton.c, create_mime_message_skeleton_add_attachment.c, parse_mime_message.c, and save_attachment_to_file.c.

int cmime_message_from_file	(	CMimeMessage_T **	message,
		const char *	filename,
		int	header_only
	)

Parse given file and create a CMimeMessage_T object.

Parameters

message	out param to return the new message object
filename	path to message file
header_only	parse only message headers, 1 = tue, 0 = false

Returns: 0 on success, -1 on stat error, -2 if not a regular file, -3 if reading fails, 1 if parsing failed because of invalid input, 2 if parsing failed due to memory exhaustion

Examples:: parse_mime_message.c, and save_attachment_to_file.c.

int cmime_message_from_string	(	CMimeMessage_T **	message,
		const char *	content,
		int	header_only
	)

Parse given string and create a new CMimeMessage_T object.

Parameters

message	out param to return the new message object
content	message string to parse
header_only	parse only message headers, 1 = tue, 0 = false

Returns: 0 on success or -1 in case of error, 1 if parsing failed because of invalid input, 2 if parsing failed due to memory exhaustion

char* cmime_message_generate_boundary ( void )

Generate a message boundary.

Returns: a newly allocated boundary

Examples:: create_mime_message.c.

char* cmime_message_generate_message_id ( void )

Generate a message id.

Returns: a newly allocated message id string

Examples:: create_mime_message_part_from_file.c.

char* cmime_message_get_content_description ( CMimeMessage_T * message )

Get Content-Description header value.

Parameters

message a CMimeMessage_T object

char* cmime_message_get_content_id ( CMimeMessage_T * message )

Get Content-ID header value.

Parameters

message a CMimeMessage_T object

Returns: Content-ID header value

Examples:: parse_mime_message.c.

char* cmime_message_get_content_transfer_encoding ( CMimeMessage_T * message )

Get Content-Transfer-Encoding value.

Parameters

message a CMimeMessage_T object

Returns: Content-Transfer-Encoding header value

char* cmime_message_get_content_type ( CMimeMessage_T * message )

Get Content-Type header value.

Parameters

message a CMimeMessage_T object

Returns: Content-Type header value

Examples:: parse_mime_message.c.

char* cmime_message_get_date ( CMimeMessage_T * message )

Get date string from CMimeMessage_T object.

Parameters

message a CMimeMessage_T object

Returns: date string

CMimeHeader_T* cmime_message_get_header	(	CMimeMessage_T *	message,
		const char *	header
	)

Get header for given key.

Parameters

message	a CMimeMessage_T object
header	name of header to search for

Returns: a CMImeHeader_T object, or NULL in case of error

char* cmime_message_get_message_id ( CMimeMessage_T * message )

Get MessageID of message object.

Parameters

message a CMimeMessage_T object

Returns: message id of CMimeMessage_T object

char* cmime_message_get_mime_version ( CMimeMessage_T * message )

Get Mime-Version header value.

Parameters

message a CMimeMessage_T object

Returns: Mime-Version header value

Examples:: parse_mime_message.c.

char* cmime_message_get_sender_string ( CMimeMessage_T * message )

Get sender of a CMimeMessage_T object as string.

Parameters

message a CMimeMessage_T object

Returns: sender of message as CMimeAddress_T object

Examples:: parse_mime_message.c.

char* cmime_message_get_subject ( CMimeMessage_T * message )

Get the subject string from CMimeMessage_T object.

Parameters

message a CMimeMessage_T object

Returns: subject string to append

CMimeMessage_T* cmime_message_new ( void )

Creates a new CMimeMessage_T object.

Returns: CMimeMessage_T pointer, or NULL on failure

Examples:: create_mime_message.c, create_mime_message_part_from_file.c, parse_mime_message.c, and save_attachment_to_file.c.

int cmime_message_part_remove	(	CMimeMessage_T *	message,
		CMimePart_T *	part
	)

Remove a mime part from message.

Parameters

message	a CMimeMessage_T object
part	the mime part which should be removed

Returns: 0 on success, -1 in case of error

void cmime_message_prepend_subject	(	CMimeMessage_T *	message,
		const char *	s
	)

prepend string to subject

Parameters

message	a CMimeMessage_T object
s	string to prepend

Examples:: append_and_prepend_subject.c.

int cmime_message_set_body	(	CMimeMessage_T *	message,
		const char *	content
	)

Set plain body to non multipart message.

Parameters

message	a CMimeMessage_T object
content	body content

Returns: 0 on sucess, -1 if message is multipart

Examples:: append_and_prepend_subject.c, create_mime_message.c, create_mime_message_part_from_file.c, create_mime_message_skeleton.c, and create_mime_message_skeleton_add_attachment.c.

void cmime_message_set_boundary	(	CMimeMessage_T *	message,
		const char *	boundary
	)

Set message boundary.

Parameters

message	a CMimeMessage_T object
boundary	the boundary to set

void cmime_message_set_content_description	(	CMimeMessage_T *	message,
		const char *	s
	)

Set Content-Description value.

Parameters

message	a CMimeMessage_T object
s	Content-Description header value

void cmime_message_set_content_id	(	CMimeMessage_T *	message,
		const char *	s
	)

Set Content-ID header value.

Parameters

message	a CMimeMessage_T object
s	Content-ID header value

void cmime_message_set_content_transfer_encoding	(	CMimeMessage_T *	message,
		const char *	s
	)

set Content-Transfer-Encoding value

Parameters

message	a CMimeMessage_T object
s	Content-Transfer-Encoding value

void cmime_message_set_content_type	(	CMimeMessage_T *	message,
		const char *	s
	)

Set Content-Type header.

Parameters

message	a CMimeMessage_T object
s	Content-Type string

void cmime_message_set_date	(	CMimeMessage_T *	message,
		const char *	s
	)

Set date string header.

Parameters

message	a CMimeMessage_T object
s	date string

int cmime_message_set_date_now ( CMimeMessage_T * message )

Get current time and set date header.

Parameters

message a CMimeMessage_T object

Returns: 0 on success or -1 in case of error

Examples:: create_mime_message.c, and create_mime_message_part_from_file.c.

int cmime_message_set_header	(	CMimeMessage_T *	message,
		const char *	header
	)

Set a header to message object. If header already exists, it will be overwritten.

Parameters

message	a CMimeMessage_T object
header	full header string

Returns: 0 on success or -1 in case of error

void cmime_message_set_message_id	(	CMimeMessage_T *	message,
		const char *	mid
	)

Set message id to CMimeMessage_T object, if alreay exists, value will be overwritten.

Parameters

message	a CMimeMessage_T object
mid	message id string

Examples:: create_mime_message.c, and create_mime_message_part_from_file.c.

void cmime_message_set_mime_version	(	CMimeMessage_T *	message,
		const char *	s
	)

Set Mime-Version header value. According to RFC 2045, Mime-Version header is required at the top level of a message. Not required for each body part of a multipart entity. It's required for the embedded headers of a body of type "message/rfc822" or "message/partial" if the embedded message is itself claimed to be MIME.

Parameters

message	a CMimeMessage_T object
s	Mime-Version header value

void cmime_message_set_sender	(	CMimeMessage_T *	message,
		const char *	sender
	)

Add sender to CMimeMessage_T object. If sender already exists, it will be overwritten.

Parameters

message	a CMimeMessage_T obect
sender	sender string

Examples:: create_mime_message.c, and create_mime_message_part_from_file.c.

void cmime_message_set_sender_encode	(	CMimeMessage_T *	message,
		const char *	sender
	)

Add sender to CMimeMessage_T object and convert to 7 bit mime encoded string based on RFC 2047. If sender already exists, it will be overwritten.

Parameters

message	a CMimeMessage_T obect
sender	sender string

void cmime_message_set_subject	(	CMimeMessage_T *	message,
		const char *	s
	)

Set message subject.

Parameters

message	a CMimeMessage_T object
s	the subject string

Examples:: create_mime_message.c, and create_mime_message_part_from_file.c.

void cmime_message_set_subject_encode	(	CMimeMessage_T *	message,
		const char *	s
	)

Set message subject and convert to 7 bit mime encoded string based on RFC 2047.

Parameters

message	a CMimeMessage_T object
s	the subject string

int cmime_message_to_file	(	CMimeMessage_T *	message,
		const char *	filename
	)

Write CMimeMessage_T object to file.

Parameters

message	a CMimeMessage_T object
filename	path to file, which should be written

Returns: the number of items successfully written on success, -1 in case of error

Examples:: append_and_prepend_subject.c, create_mime_message.c, create_mime_message_part_from_file.c, create_mime_message_skeleton.c, and create_mime_message_skeleton_add_attachment.c.

char* cmime_message_to_string ( CMimeMessage_T * message )

Return a message object as string.

Parameters

message a CMimeMessage_T object

Returns: message as newly allocated string

Examples:: append_and_prepend_subject.c, create_mime_message.c, create_mime_message_part_from_file.c, create_mime_message_skeleton.c, create_mime_message_skeleton_add_attachment.c, and parse_mime_message.c.

Data Structures

Macros

Enumerations

Functions

Detailed Description

Macro Definition Documentation

Enumeration Type Documentation

Function Documentation
